Industrial Regeneration Heater For Air

Industrial Regeneration Heater For Air 1.Industrial flange heater is a u-shaped tubular electric heating element, according to the different heating medium design specifications, in accordance with the requirements for the power configuration on the flange cover assembly, insert the heating material, heating element a lot of work to be heating medium heat conduction medium temperature, to achieve the required process requirement. 2.When the medium temperature reaches the set value required by the process, the control system adjusts the output power of the electric heater according to the temperature sensor signal and PID operation, and realizes the temperature control of the resistive load of the heating element to make the medium temperature uniform and meet the required requirements;

Send Inquiry

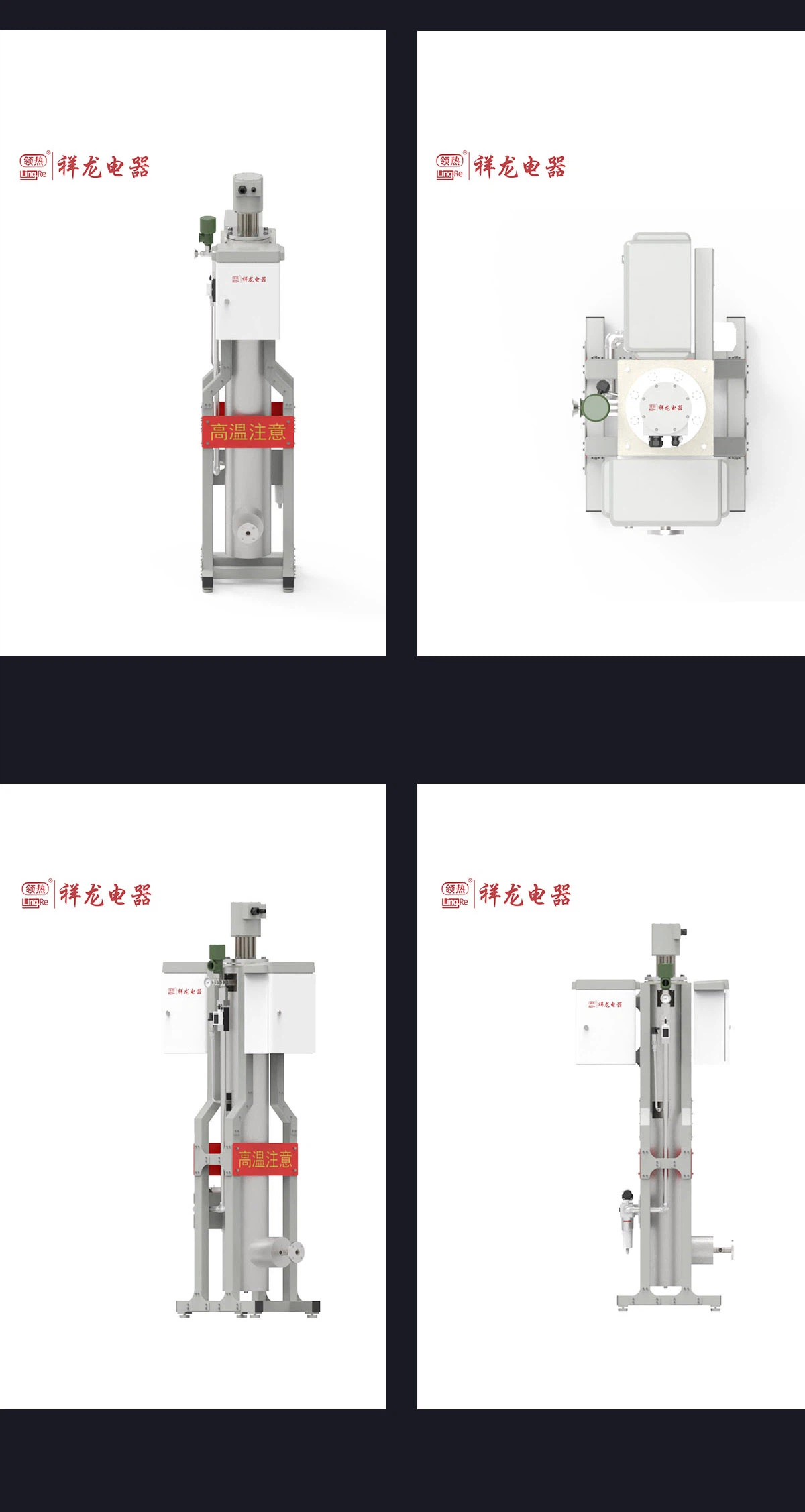

DN125 35KW Or Customized Industrial Flanged Heaters For Air

We can use the least cost to bring more power.Industrial flange heaters is robust heater designed with heavy-duty construction, making them perfect for the toughest air processing applications. They are resistant to dirt, vibration, and contamination. The optimal sheath material and maximum allowable watt densities are used to minimize size, weight, and footprint.

Model	XL-125-380/35	Power(KW)	35
Voltage(V)	380	Wiring Form	/
Frequency(Hz)	50/60	Cold Insulation Resistance(Ω)	≥5
Wiring Group	1	Over-temperature Protection Switch (yes/no)	Yes
Total Current(A)	53.18	Per Group Current(A)	53.18
Interphase Resistance(Ω)	8.25	Surface Load(W/cm²)	3.94
Heating Medium	Air	Material of Heating Tube	Lncoloy 800
Standard of Flange	HG/T 20592-2009 DN125 PN16	Material of Flange	316
Design Pressure(Mpa)	0.52	Operating Pressure(Mpa)	0.52
Design Tempreture(℃)	600	Operating temperature(℃)	550
Protection Grade	IP55	Explosion-proof Grade	/
Design Standards	JB/T 2379-2016	Heating Tube Diameter(mm)	12
Length of Heating Tubes Under The Flange(mm)	1500	Cold Zone Length of Heating Tubes Under The Flange(mm)	200
Center Distance of Heating Tube(mm)	40	Quantity of Heating Tubes(piece)	9
Product Dimensions For Reference(mm)	23001000600	Weight For Reference(KG)	250

Advantages of industrial flange heater:

1. The surface power is large, so that the air heating surface load 2 ~ 4 times.

2. Highly dense and compact structure. Because the whole is short and dense, so the stability is good, installation without bracket.

3. Single replacement is very convenient, greatly saving the maintenance cost in the future.

4. Choose imported and domestic high-quality materials. Scientific production technology, strict quality management, to ensure superior electrical performance of electric heating tube

Flanged immersion heaters
